Search found 18 matches

by DavidS
Mon Jan 06, 2020 1:26 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

Hi everyone, I just finished this guitar and I would like to share some of my experiences. Firstly, thanks to everyone who helped me out along the way. The finished guitar sounds amazing beyond expectations. Very happy with it. In hindsight there are a few lessons: Closed box T(1,1)2 seemed low at 1...
by DavidS
Sun Nov 03, 2019 4:14 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

Thanks Trevor. I started with the book dimensions but did take a bit of to get the weight down. I thought it was more but when I look closely it was only 1.5mm off the back and 2mm off each end. That should be within the safety margin.
Regards
David
by DavidS
Sat Nov 02, 2019 11:25 am
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

I am open for advice on my bridge glueing area of 41.5mm2. I am considering making a bigger bridge. Currently have a top resonance of 182Hz with bridge taped on. Target is 170Hz so I could accommodate a heavier bridge.
by DavidS
Tue Oct 29, 2019 2:53 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

Hi Dave, thanks for your comments. I am working up to doing a cutaway, perhaps next time. Bridge is 9mm high at the centre of the front. I have raduised the saddle area to about 20" so it is not as high at the ends of the saddle. At the back it is about 7mm high. The back face is chamfered at about ...
by DavidS
Mon Oct 28, 2019 8:51 am
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

I finished bridge and managed to get to 17g. To get down to that, I needed to reduce the footprint a little. It is about 41.5 cm2 which is lower than the book recommendation. I am hoping that's OK given that I have at stiff bridge plate with carbon fibre. IMG_20191026_172407.jpg I improved my tappin...
by DavidS
Wed Oct 23, 2019 9:41 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

Thanks Trevor, Thanks Richard, I will carry on and see where it ends up. Started making the bridge today. Padauk with CF. Will be interesting to see if 15g can be achieved.

David
by DavidS
Tue Oct 22, 2019 8:09 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

Hi Trent, thanks for your reply. "Clean Work" is a very much appreciated compliment for me. I am trying to figure out whether I am going to be able to achieve a finished T(1,1)2 close enough to 170Hz given I am starting at 180hz closed box. I simply don't know how much effect binding, neck, finish, ...
by DavidS
Tue Oct 22, 2019 1:50 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

Re: My Second Build

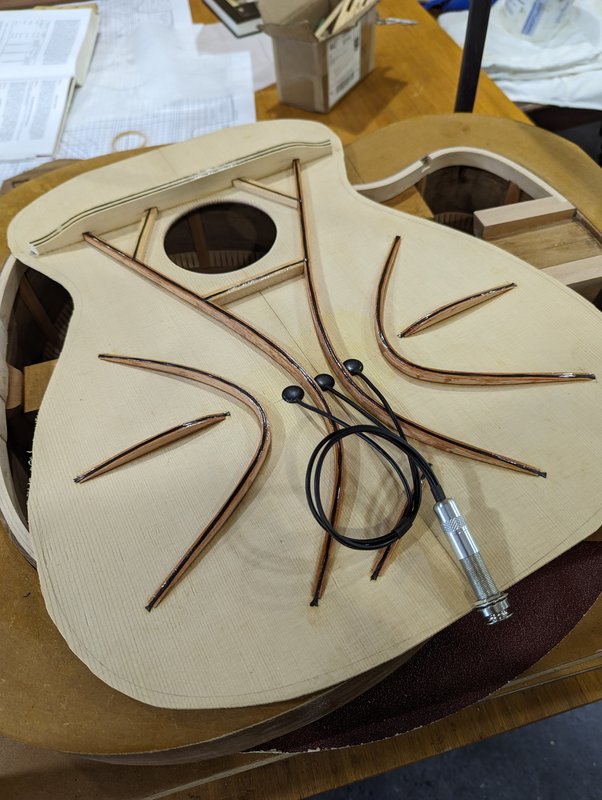

Here are pictures that I tried to attach to previous post: IMG_20191016_160909.jpg IMG_20191016_160647.jpg I have now glued on the soundboard: IMG_20191021_082543.jpg I have tap tested the body. I am targeting: T(1,1)1 90Hz T(1,1)2 170Hz T(1,1)3 214Hz I currently 97Hz, 180Hz, 215Hz with the bridge p...
by DavidS
Wed Oct 16, 2019 4:44 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: My Second Build
Replies: 15
Views: 2005

My Second Build

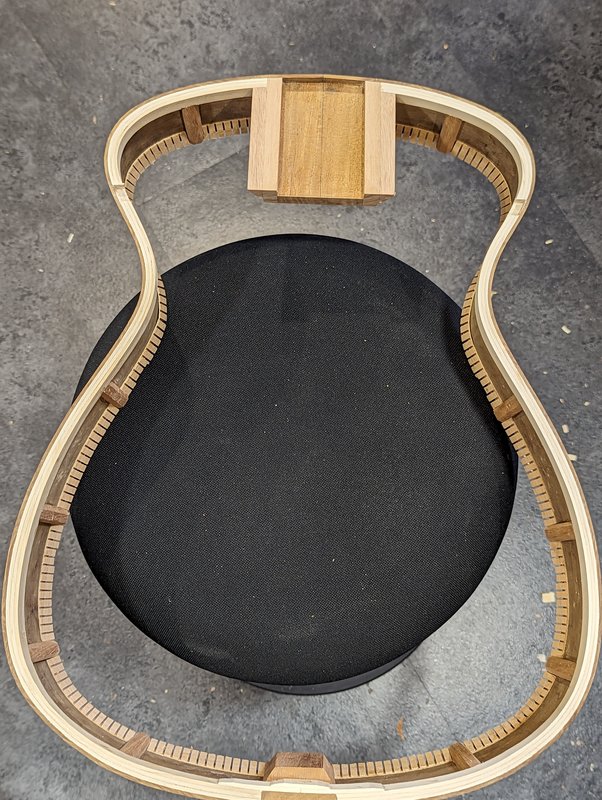

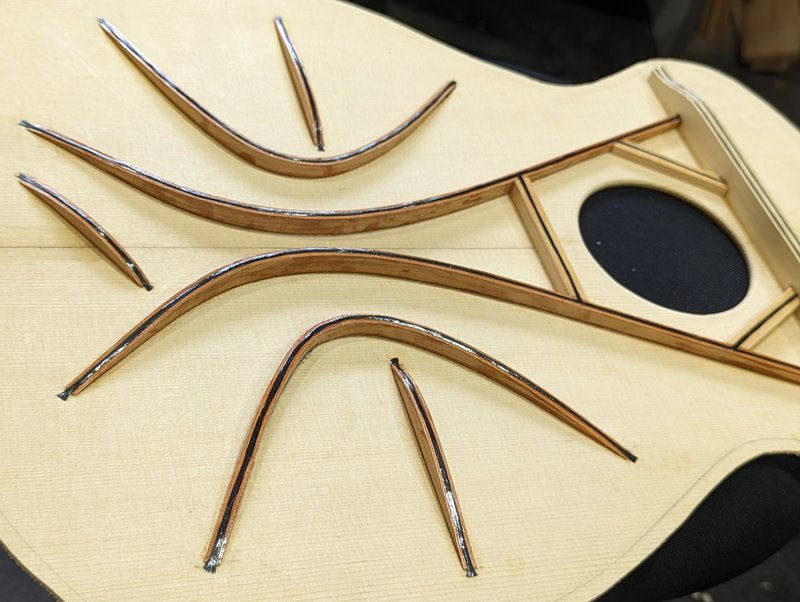

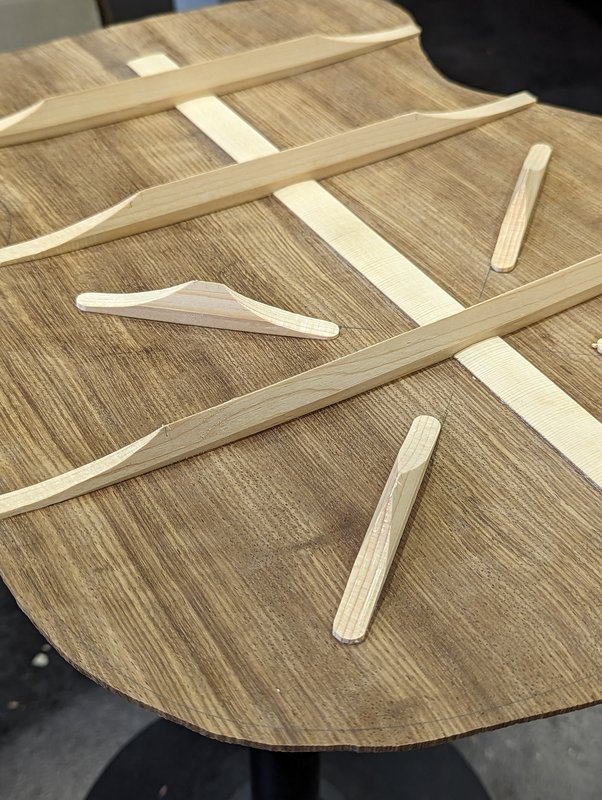

I have been working on my second guitar build. It is medium sized falcate braced steel string as per the book but I am not attempting a cut away. https://1drv.ms/u/s!AoLKXB4uYzAzlqVwU7N8OHs-YXOpRw?e=R9rPtG I glued the back on today. https://1drv.ms/u/s!AoLKXB4uYzAzlqVuW-W_Fua08QsXPA?e=JI7AbO It is C...
by DavidS
Sun Oct 06, 2019 9:48 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Case for 000
Replies: 2
Views: 582

Re: Case for 000

Thanks Trevor, much appreciated.
by DavidS
Sat Oct 05, 2019 2:16 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Case for 000
Replies: 2
Views: 582

Case for 000

Hi, just wondering if someone can point me to a case that fits the Gore/Gillet 000
Thanks
by DavidS
Sat Sep 14, 2019 12:43 pm
Forum: Instrument Builders Forum
Topic: Bote-cote epoxy
Replies: 11
Views: 2389

Re: Bote-cote epoxy

EcoPoxy might be worth looking at as an alternative. I worked with it on a mates fibreglassing project. Nice to use & virtually no odour. Apparently it's plant based.
by DavidS
Sun Aug 11, 2019 8:25 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Carbon Fibre or not
Replies: 2
Views: 973

Carbon Fibre or not

In 7.3.6 of Trevor's book, he gives bridge plate thickness for 'with Carbon Fibre' and 'Without Carbon Fibre'. I am planning to start building a falcate braced steel string and wonder would like some commentary on the pros and cons of omitting the carbon fibre on the bridge plate.
by DavidS
Thu Aug 01, 2019 2:33 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Advice on Resonances
Replies: 7
Views: 1450

Re: Advice on Resonances

After Trevor's advice I added a piece of spruce into the back brace scallop. This has raised T(1,1)3 to 223Hz and T(1,1)2 is around 180Hz depending on how I tap. T(1,1)1 has moved up from 98 to 99Hz. Not quite enough however 'G' is sounding pretty good. I don't really want to start enlarging the sou...
by DavidS
Wed Jul 31, 2019 4:30 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Advice on Resonances
Replies: 7
Views: 1450

Re: Advice on Resonances

Hi Trevor, thanks for your advice. I will add a piece to the centre scallop of the back brace and see what happens. I must say, I am pretty happy with the guitar already but quite keen to push ahead and see where it can go. Particularly a mod like this which is reversible.
by DavidS
Sun Jul 28, 2019 6:43 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Advice on Resonances
Replies: 7
Views: 1450

Re: Advice on Resonances

Thanks for your reply; it was a great help. I had been concerned about amplitude differences but you put my mind at rest on that point. I was capturing the spectrum with guitar tuned up but dampening the strings. Mic was 25-30cm away from sound hole. The main issue I had was the G on the 6th string ...
by DavidS
Sat Jul 27, 2019 11:19 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Advice on Resonances
Replies: 7
Views: 1450

Re: Advice on Resonances

To illustrate what I am asking about, here is a screen shot of spectrum capture:
In this capture the peaks are 98Hz, 188Hz and 212Hz
by DavidS
Sat Jul 27, 2019 2:16 pm
Forum: Contemporary Acoustic Guitar Design and Build - Trevor Gore
Topic: Advice on Resonances
Replies: 7
Views: 1450

Advice on Resonances

Hi I have finished my first guitar and now looking at tuning the body resonances. It's OM sized steel string, x-braced with live back. Sounds very sweet but I feel it could be improved. There are a few resonance related intonation issues. So, if anyone is interested in helping me think it through, h...
