Counter sinking bolts BO/BO fretboard extension

Post by lamanoditrento » Thu Feb 01, 2018 12:17 pm

Hi,

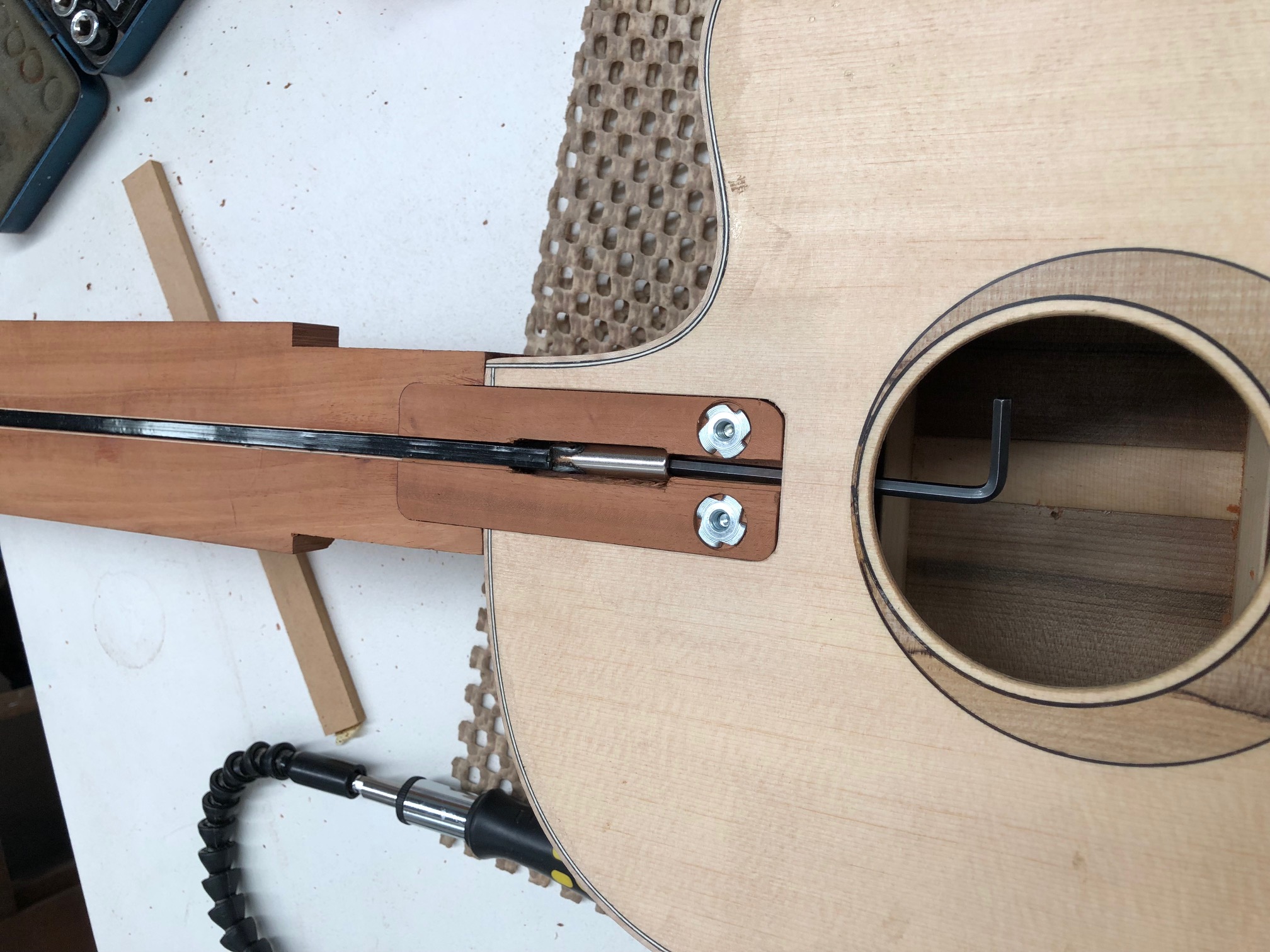

Yesterday, installed t-nuts and bolted the fretboard extension, which left like a milestone I was pretty happy about.
BOBO neck ext.jpg

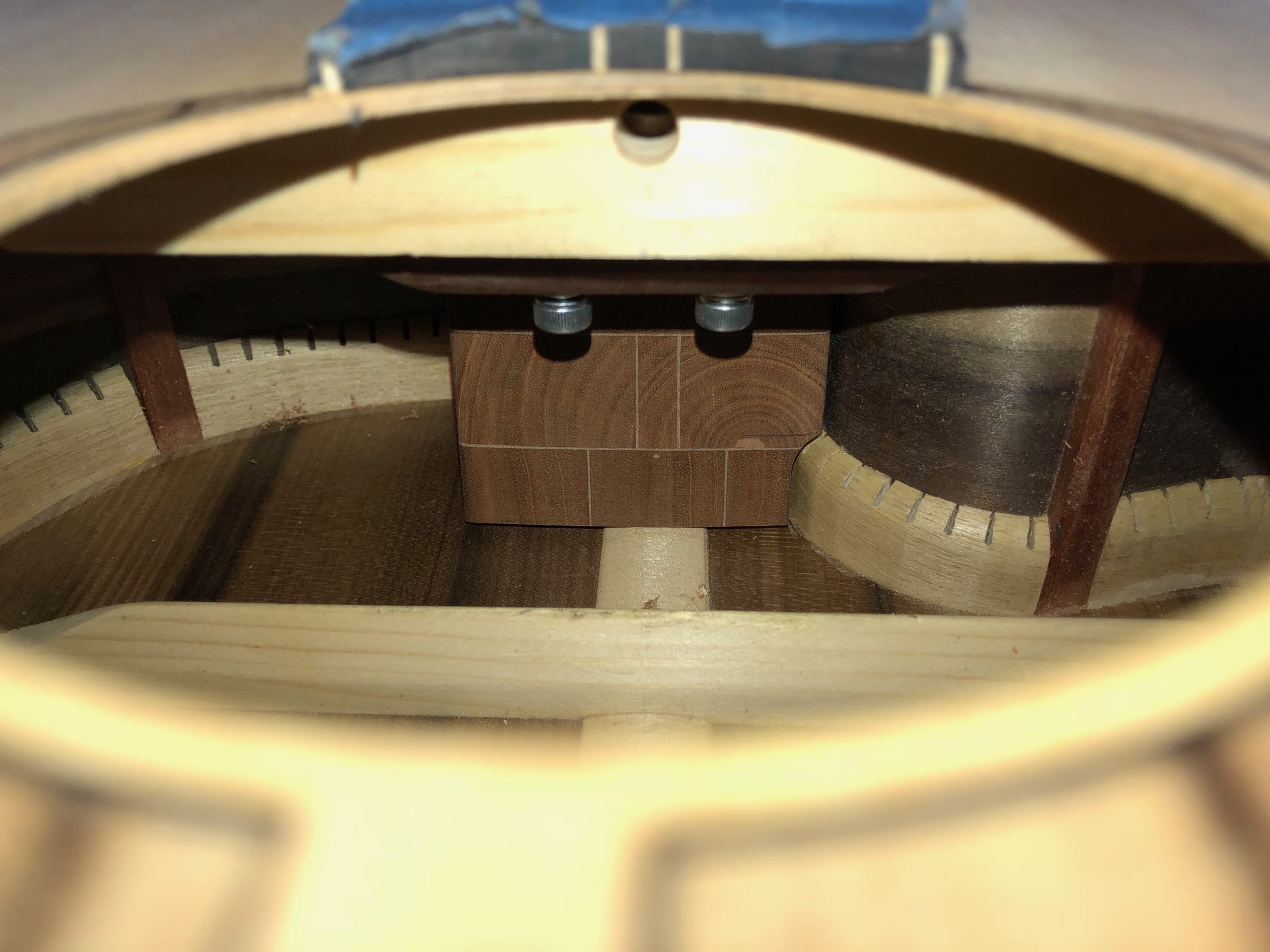

However as the head block plate is 45mm deep, you can easily see the bolt head through the sound hole, which I am unhappy about. I have used M5 bolts/t-nuts but after 2 washers they are clear as day through the SH. Anyway, I don't have an appropriate reverse countersink bit and the 5mm hole will likely be an issue for finding something commercially available.

Does anyone have any ideas about how I might countersink them?
Trent

simso
Blackwood
Posts: 1671
Joined: Mon Apr 25, 2011 10:36 pm
Location: Perth WA

Re: Counter sinking bolts BO/BO fretboard extension

Post by simso » Thu Feb 01, 2018 2:25 pm

I like the way you have done that.

It could be onsold as a commercial bolt on kit.

Why not turn the bolt location into a feature, turn some round wood up to go around the bolts and glue them to the neck block, emphasize it to make people go, Mmm.

Steve
Steve
Master of nothing,

Do your own repairs - http://www.mirwa.com.au/How_to_Series.html

User avatar
Trevor Gore
Blackwood
Posts: 1440
Joined: Mon Jun 20, 2011 8:11 pm

Re: Counter sinking bolts BO/BO fretboard extension

Post by Trevor Gore » Thu Feb 01, 2018 3:21 pm

Some people use a re-purposed standard spade bit. Just re-grind the shoulders to the same style of cutting edge as is normally on the bottom. It can be done with a small grinder (Dremel or die grinder), or even with just a file. The shafts are typically ~6mm diameter (or a little less) so with the hex part cut off they work well for M6 hardware. They should work OK for M5 too, giving a bit of wiggle room for the fasteners. The hole needs to be a reasonably close approximation to the shaft diameter to avoid a lot of chatter. People normally cut off the old (bottom) cutting edge.

Otherwise Google "reverse spot face" or "reverse counterbore" or look for one of those counterbore cutters that are held on with a grub screw so you can mount it in reverse (like in the book).

User avatar
dotbot
Kauri
Posts: 38
Joined: Sun Apr 05, 2015 7:17 pm
Location: Canberra

Re: Counter sinking bolts BO/BO fretboard extension

Post by dotbot » Fri Feb 02, 2018 8:16 am

A recent thread on this very subject at Ukulele Underground:

http://forum.ukuleleunderground.com/sho ... -neck-bolt

User avatar
lamanoditrento
Blackwood
Posts: 313
Joined: Thu May 05, 2016 9:50 am

Re: Counter sinking bolts BO/BO fretboard extension

Post by lamanoditrento » Fri Feb 02, 2018 9:18 am

Thanks Steve, but I'm just following the instructions that Trevor & Gerard lay down in there book. I don't mind the idea of some wooden bolt heads, maybe on the next one.

Thanks Trevor & dobot. I will give making a bit out of a spade bit or bolt.
Trent

User avatar
Trevor Gore
Blackwood
Posts: 1440
Joined: Mon Jun 20, 2011 8:11 pm

Re: Counter sinking bolts BO/BO fretboard extension

Post by Trevor Gore » Tue Feb 27, 2018 3:31 pm

This tool from Stew-Mac:

http://www.stewmac.com/Luthier_Tools/To ... utter.html

would do the job. Expensive, but maybe worth it if you also do head-end adjustable truss rods.

User avatar
lamanoditrento
Blackwood
Posts: 313
Joined: Thu May 05, 2016 9:50 am

Re: Counter sinking bolts BO/BO fretboard extension

Post by lamanoditrento » Thu Mar 15, 2018 9:35 am

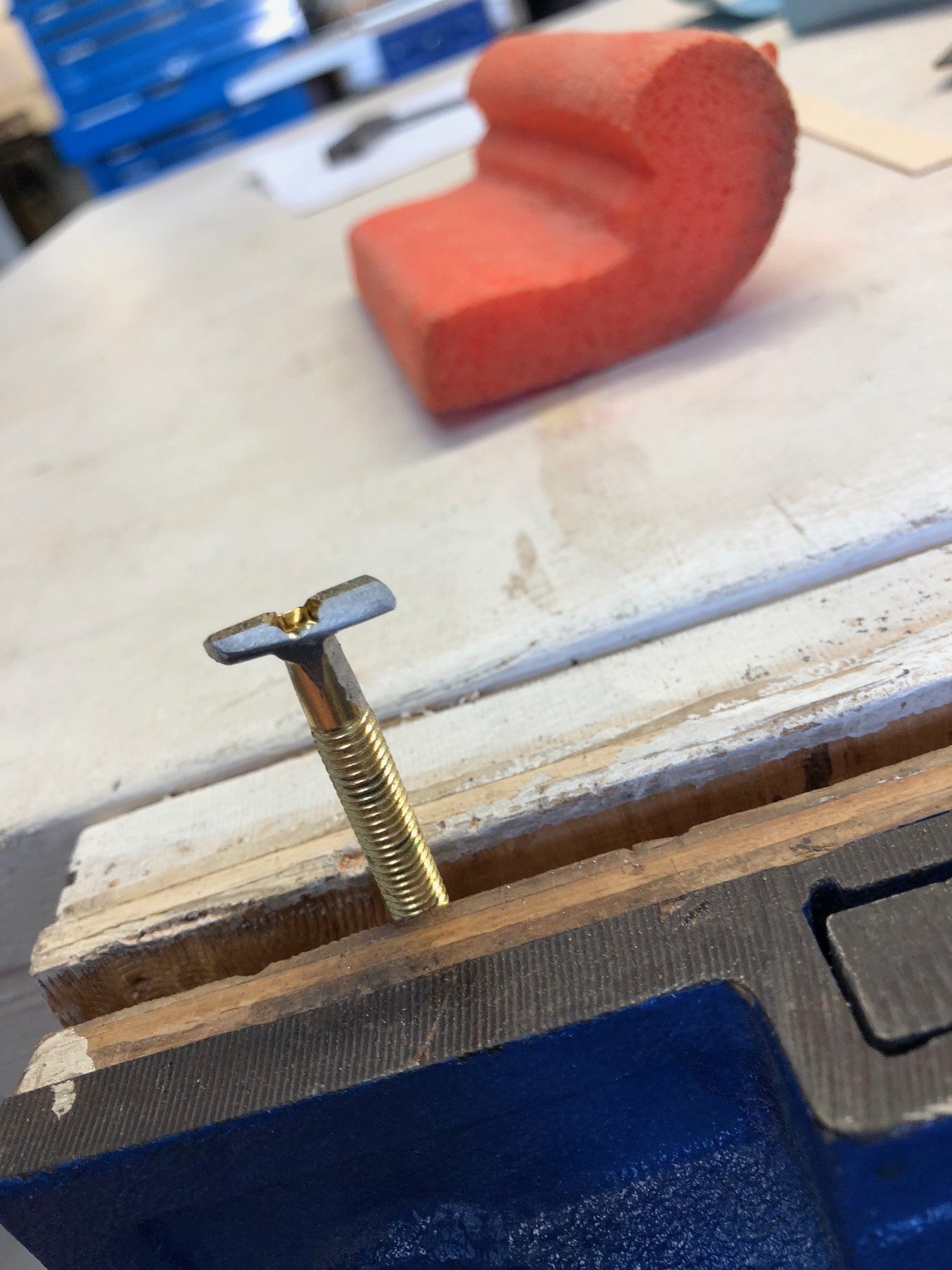

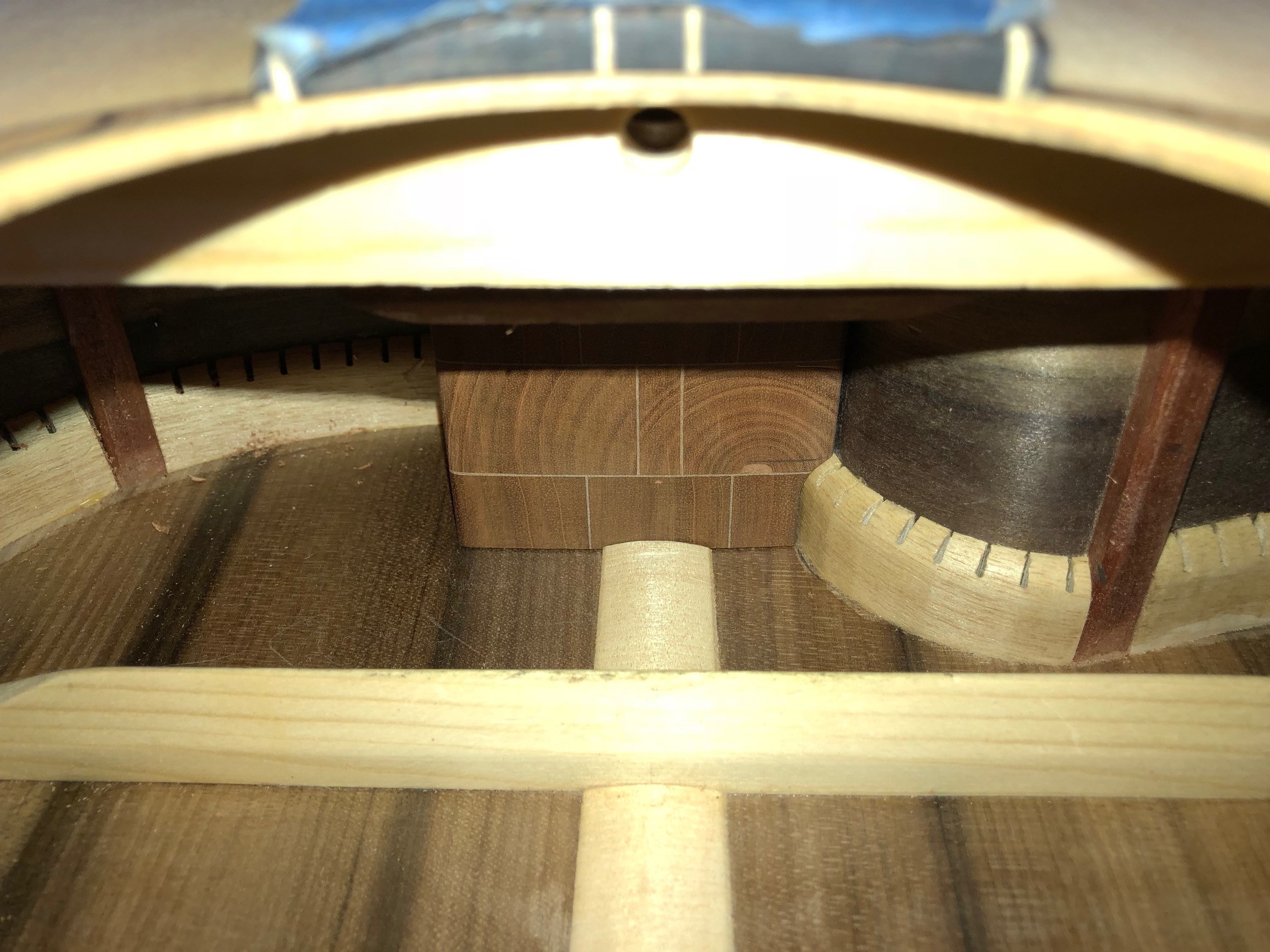

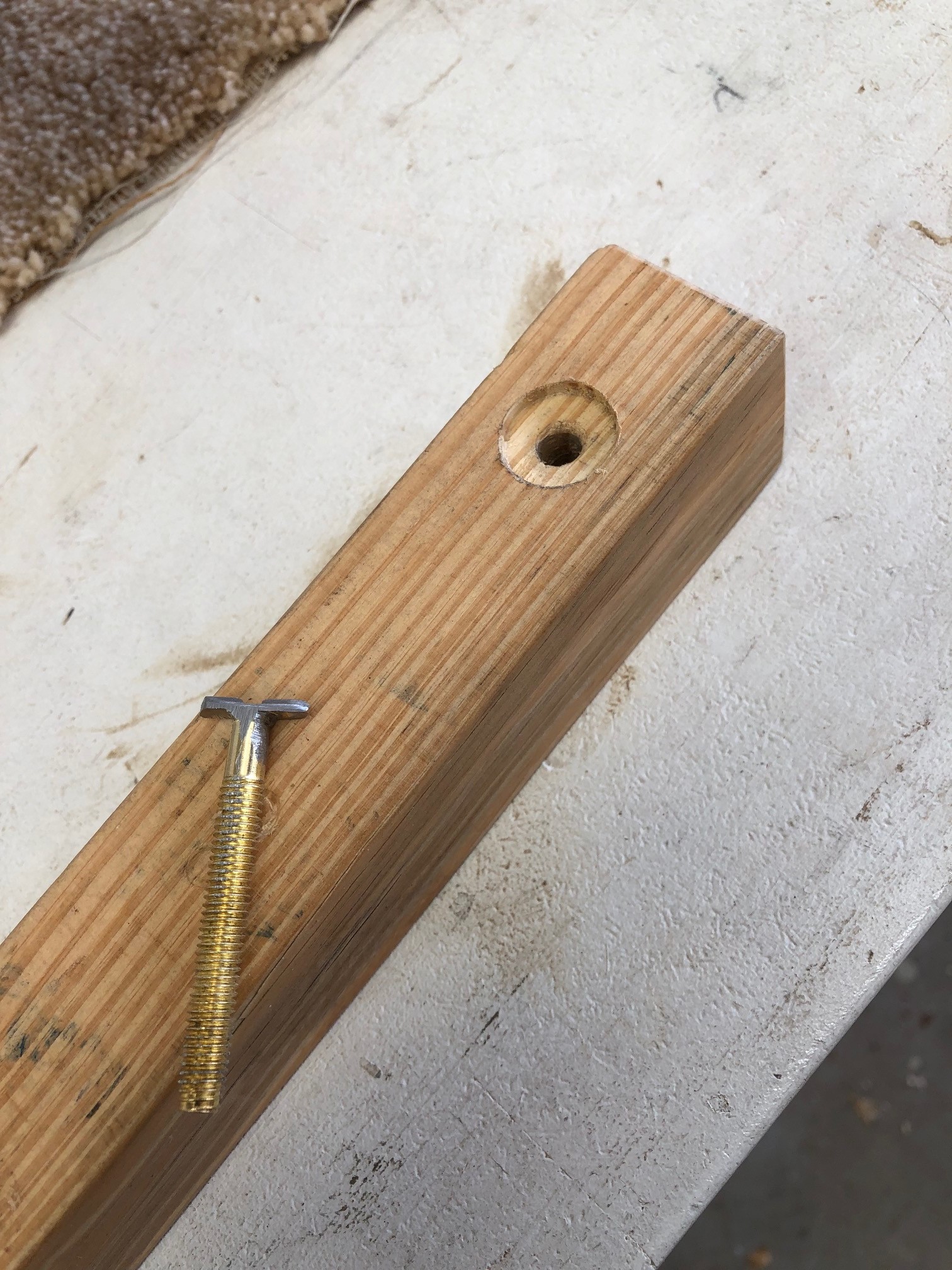

So I ended up widening the holes in the neck block to 6mm and them making a bit by filing to shape and sharpening with a diamond stick. Worked a treat! Thanks everyone. A few photos and a before and after:
Bit and test.jpg
Trent

Ken Lewis
Gidgee
Posts: 7
Joined: Mon Oct 07, 2013 2:36 am
Location: Mount Pearl, Nl. Canada

Re: Counter sinking bolts BO/BO fretboard extension

Post by Ken Lewis » Sun Mar 18, 2018 11:50 pm

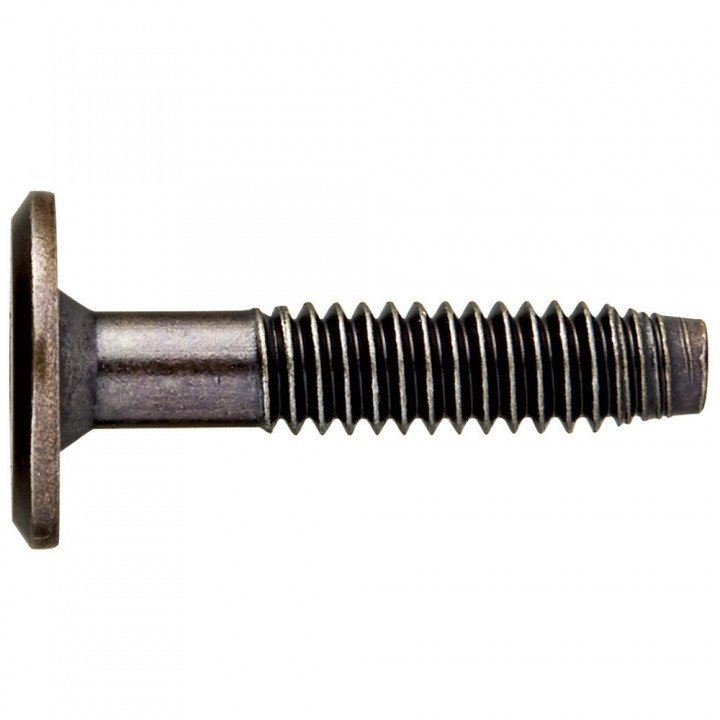

A connector bolt like this one shouldn't require any counter bore. The low profile keeps it out of site.
Hardened and plenty strong.

ArmstrongLutherie
Wandoo
Posts: 18
Joined: Mon Jun 16, 2014 5:48 pm
Location: Brisbane, Australia
Contact:

Re: Counter sinking bolts BO/BO fretboard extension

Post by ArmstrongLutherie » Tue Mar 20, 2018 9:07 am

Hi Ken, do you know if they're available in M5 and if so where can be bought. These are normally M6 which is too big for this particular application.

Ken Lewis
Gidgee
Posts: 7
Joined: Mon Oct 07, 2013 2:36 am
Location: Mount Pearl, Nl. Canada

Re: Counter sinking bolts BO/BO fretboard extension

Post by Ken Lewis » Tue Mar 20, 2018 10:55 am

I use m6 or, 1/4" even, for this exact application with no problem. You're right, the m5 version probably won't be
found in your neighborhood hardware store but a quick Google search turned up several vendors. A search from
your neck of the woods might turn up something more applicable to you but here's one online site.

https://www.fastenright.com/general-fix ... pe-e1/ff06

I haven't bought from them, don't know if they ship your way but m5's are available.
Regards, Ken

User avatar
Trevor Gore
Blackwood
Posts: 1440
Joined: Mon Jun 20, 2011 8:11 pm

Re: Counter sinking bolts BO/BO fretboard extension

Post by Trevor Gore » Tue Mar 20, 2018 2:52 pm

If you use this type of fastener, be sure to get the hardened ones. Most of the furniture grade ones aren't and the hex socket will round out if used a few times with a ball end hex wrench. This was the reason we moved to the M6 socket head cap screws, which have a larger socket and are normally hardened, but will hold up even if they aren't.

blackalex1952
Blackwood
Posts: 642
Joined: Tue Aug 27, 2013 6:36 pm
Location: North East Victoria

Re: Counter sinking bolts BO/BO fretboard extension

Post by blackalex1952 » Tue Mar 20, 2018 4:34 pm

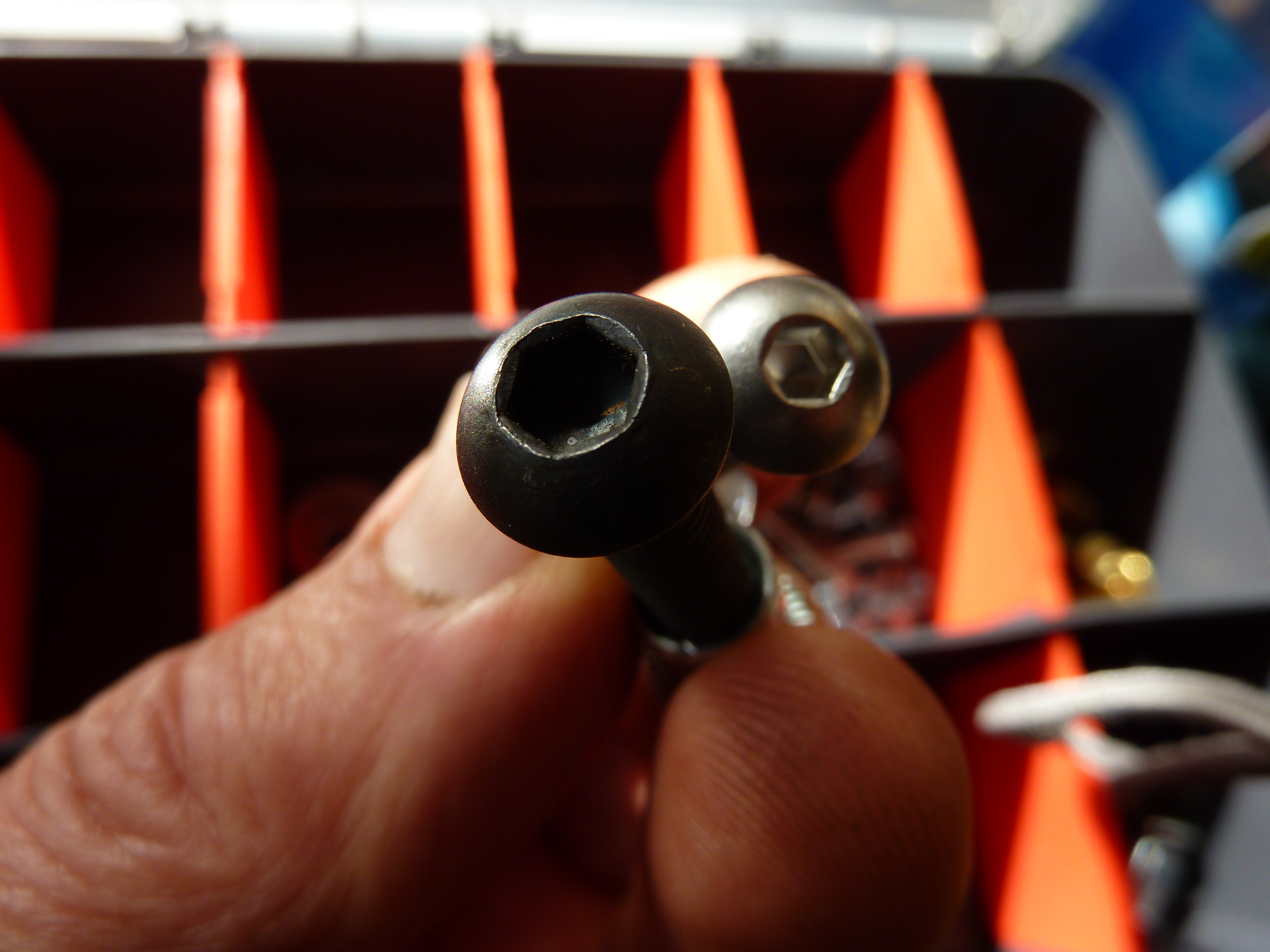

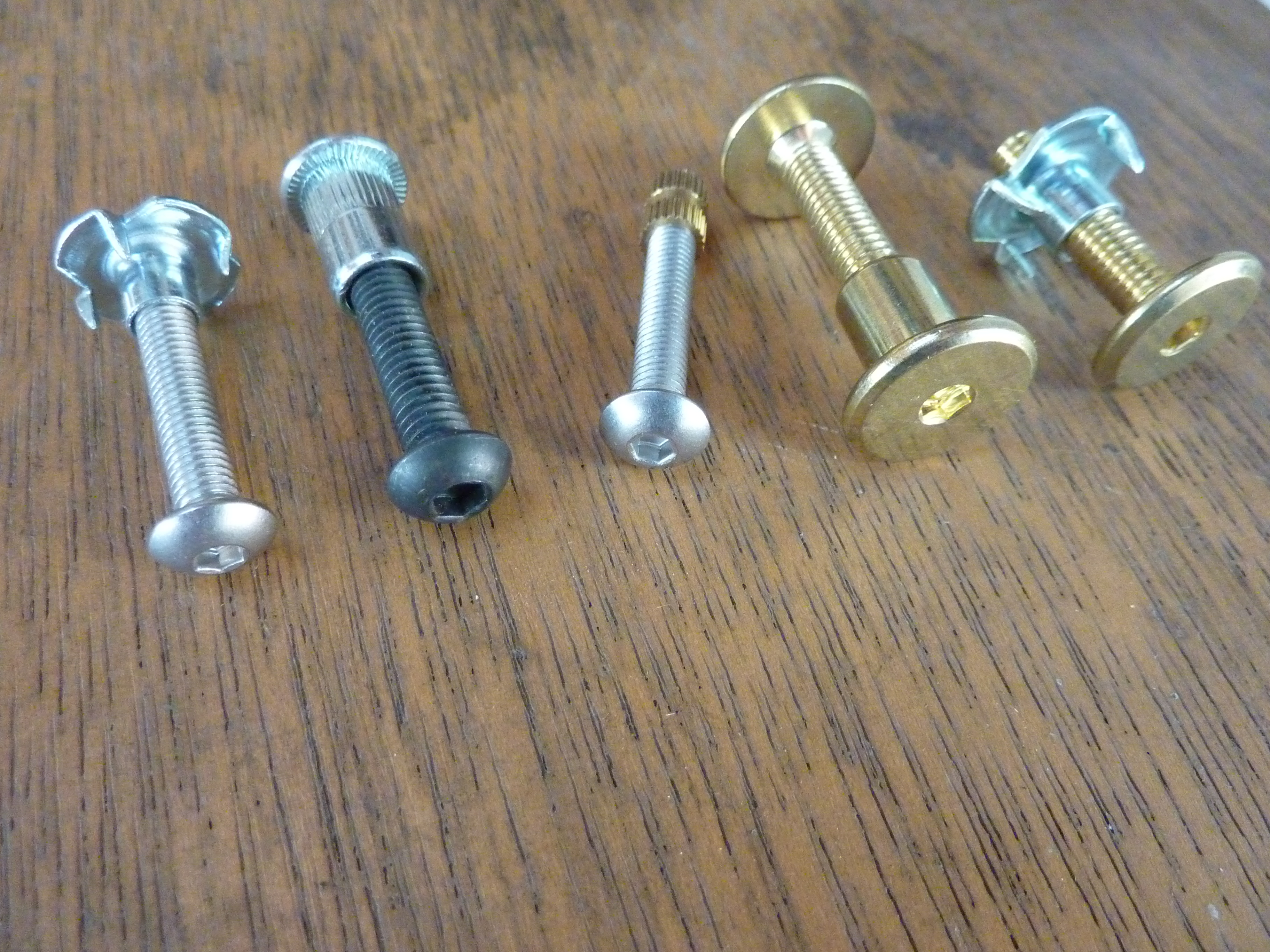

There's more than one way to skin a cat!- Ross
Attachments
"Everything I say on the topic is based solely upon inexperience and assumption!"

User avatar
kiwigeo
Admin
Posts: 9718
Joined: Sat Sep 29, 2007 5:57 pm
Location: Adelaide, Sth Australia

Re: Counter sinking bolts BO/BO fretboard extension

Post by kiwigeo » Wed Mar 21, 2018 12:31 am

blackalex1952 wrote:
Tue Mar 20, 2018 4:34 pm
There's more than one way to skin a cat!- Ross
Ross, I tried those round headed bolts and found that with the frequent working of the bolt during neck fitting the socket edges started getting quite worn. I went back to the bolts that Trevor specifies with the thicker head walls. I also find the heads of these bolts easier to turn with my fingers.
Martin

Jonny
Wandoo
Posts: 13
Joined: Sun Nov 13, 2016 8:39 pm

Re: Counter sinking bolts BO/BO fretboard extension

Post by Jonny » Thu Mar 22, 2018 7:55 pm

^^^^^^^^
Can we see this bolt you speak of Martin?
